SuperVac

Battery Operated PPV Fan

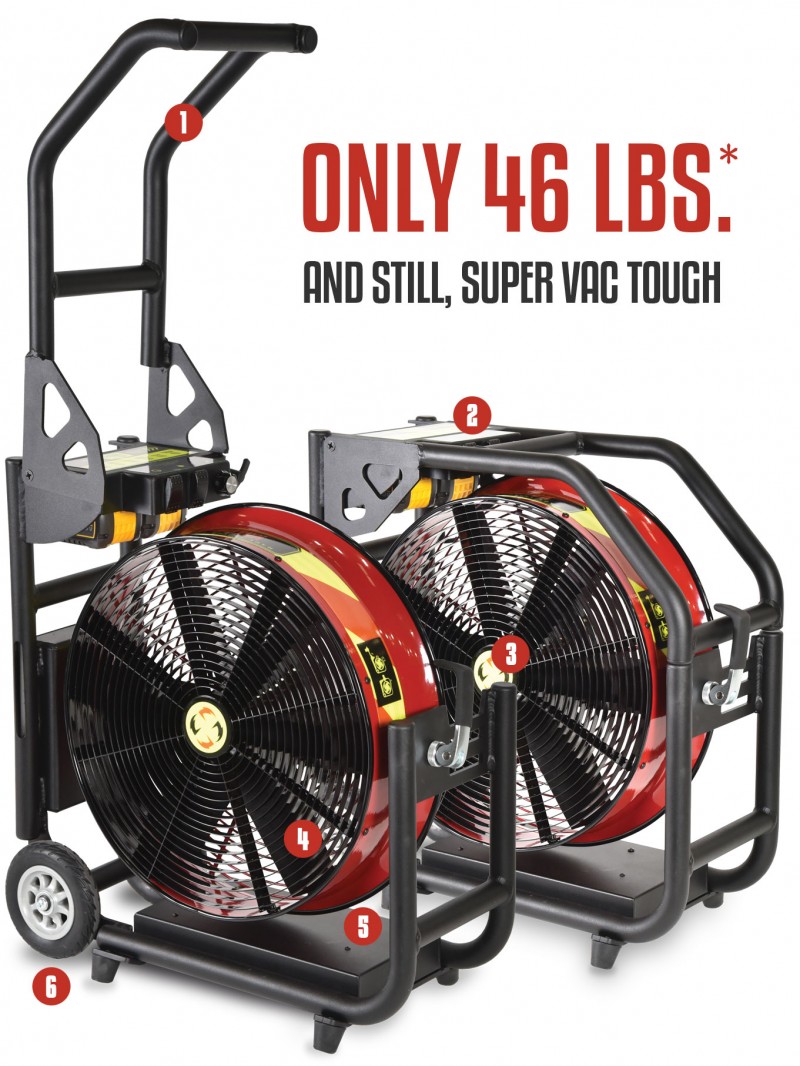

1. Curved Handle: Folds into the frame for compact storage; curved design provides higher grip for better ergonomics.
2. Compact, Roll-Cage Frame:
Features one of the most compact, lightweight designs among battery PPVs with its aluminum frame design.
3. Stream Shaper Guard:
Allows for flexible setback.
4. Polymer Blade:
Minimizes weight.
5. Optional Shore Power:
120-240V AC operation is available upon request.
6. Standard Flat-Proof Rubber Tires:
Highly maneuverable, and all without lifting the fan; easy to deploy by the smallest firefighters.

Dimensions:  25.75" High x 25.75" Wide x 11.75" Deep



180 Degree Tilt Range



BATTERY FAN
MODELS
BATTERY
COMPATIBILITY
FAN SIZE HxWxD WEIGHT RUNTIME OUTPUT
V18-BD-SP DeWalt FLEXVOLT 18″ Blade — 25.50″ x 26″ x 12.25″
650mm x 660mm x 315mm
58 lbs
26 kg
Up to 40 min. 10,840 cfm
18,417 cmh
V18-BK-SP Makita XGT 18″ Blade — 25.50″ x 26″ x 12.25″
650mm x 660mm x 315mm
56 lbs
25 kg
Up to 50 min. 9,500 cfm
16,140 cmh
V18-BL-SP Milwaukee M18 18″ Blade — 25.50″ x 26″ x 12.25″
650mm x 660mm x 315mm
58 lbs
26 kg
Up to 40 min. 9,618 cfm
16,341 cmh
V18-BW-SP Milwaukee M28 18″ Blade — 25.50″ x 26″ x 12.25″
650mm x 660mm x 315mm
56 lbs
25 kg
Up to 40 min. 9,000 cfm
15,291 cmh
V18-BH-SP HURST EWXT/E3 18″ Blade — 25.50″ x 26″ x 12.25″
650mm x 660mm x 315mm
60 lbs
25 kg
Up to 60 min. 10,000 cfm

16" and 20" models are also available.

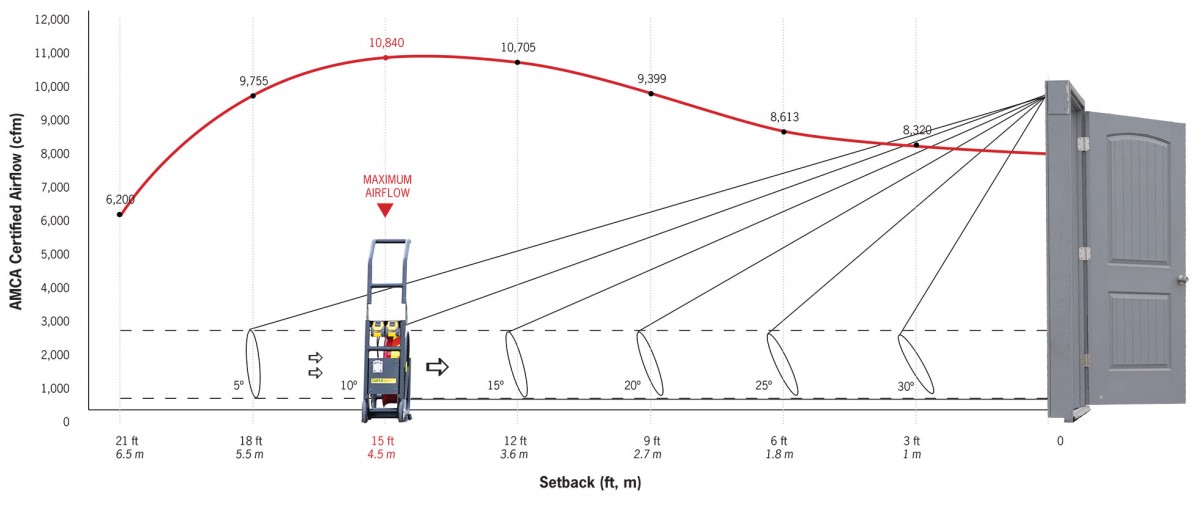

This chart shows the performance of the fan.  Click on it for a larger version.
