HUSKY FOLDING TANKS



Folding Tank Accessories are at the bottom of this page.

Tanker Dumping Into a Folding Tank

Folding Tank Being Emptied

Husky portable folding tanks are top of the line in quality and features.  Each tank is fabricated with 22 ounce per square yard material for the sides and 28 ounce material for the bottom.  Additionally, large handles are firmly attached to the floor in locations that make it a snap to effectively drain the tank.  A steel frame is standard but aluminum frames are available.

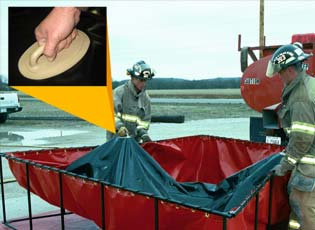

Easy Lift Handle on Husky Folding Tank














Tank Size Open Folded Double Folded-opt Steel Alum.
500 5'8" x 5'8" x 29" 7" x 5'8" x 29" 16" x 2'11" x 29" 90 lbs. 68 lbs.
750 7'0" x 7'0" x 29" 7" x 7'0" x 29" 16" x 3'7" x 29" 97 lbs. 79 lbs.
1000 8'3" x 8'3" x 29" 7" x 8'3" x 29" 16" x 4'3" x 29" 116 lbs. 96 lbs.
1500 10'3" x 10'3" x 29" 7" x 10'3" x 29" 16" x 5'3" x 29" 138 lbs. 109 lbs.
2100 11'3" x 11'3" x 29" 7" x 11'3" x 29" 16" x 5'9" x 29" 154 lbs. 124 lbs.
2500 12'3" x 12'3" x 29" 7" x 12'3" x 29" 16" x 6'3" x 29" 169 lbs. 135 lbs.
3000 13'3" x 13'3" x 29" 7" x 13'3" x 29" 16" x 6'9" x 29" 185 lbs. 149 lbs.
3500 14'3" x 14'3" x 29" 7" x 14'3" x 29" 16" x 7'3" x 29" 205 lbs. 167 lbs.
4000 15'3" x 15'3" x 29" 7" x 15'3" x 29" 16" x 7'9" x 29" 223 lbs. 178 lbs.
5000 17'3 x 17'3" x 29" 7" x 17'3" x 29" 16" x 8'9" x 29" 269 lbs. 215 lbs.

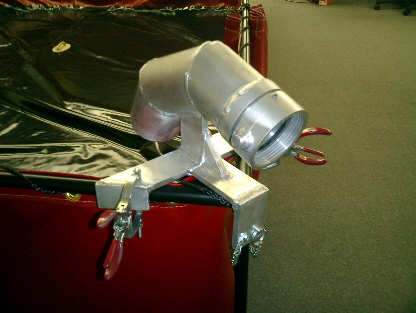

Husky Supply Line Bracket



Supply Line Bracket #HUSLB25 & HUSLBD25
The supply line bracket is fabricated of aluminum so it is lightweight and strong.  It is available as pictured, with a single fitting, or as a double fitting.  Using the bracket keeps hose in place and results in one less thing for a pump operator to worry about at a congested scene.







Husky Folding Tank Drain Connector



Drain Connector #DM10
If you frequently use two tanks at a time this drain connector is the simplest way to keep the tank levels even.  All you do is attach the collar between the 10" drain of each tank and gravity does the rest.
