HUSKY FOLDING TANKS
Folding Tank Accessories are at the bottom of this page.
 |
Husky portable folding tanks are top of the
line in quality and features. Each tank is fabricated with 22 ounce per
square yard material for the sides and 28 ounce material for the bottom.

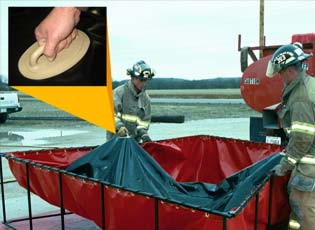

Additionally, large handles are firmly attached to the floor in locations that
make it a snap to effectively drain the tank. A steel frame is standard
but aluminum frames are available.
|
 |
| |
|
|
|
Tank Size |
Open |
Folded |
Double Folded-opt |
Steel |
Alum. |
|
500 |
5'8" x 5'8" x 29" |
7" x 5'8" x 29" |
16" x 2'11" x 29" |
90 lbs. |
68 lbs. |
|
750 |
7'0" x 7'0" x 29" |
7" x 7'0" x 29" |
16" x 3'7" x 29" |
97 lbs. |
79 lbs. |
|
1000 |
8'3" x 8'3" x 29" |
7" x 8'3" x 29" |
16" x 4'3" x 29" |
116 lbs. |
96 lbs. |
|
1500 |
10'3" x 10'3" x 29" |
7" x 10'3" x 29" |
16" x 5'3" x 29" |
138 lbs. |
109 lbs. |
|
2100 |
11'3" x 11'3" x 29" |
7" x 11'3" x 29" |
16" x 5'9" x 29" |
154 lbs. |
124 lbs. |
|
2500 |
12'3" x 12'3" x 29" |
7" x 12'3" x 29" |
16" x 6'3" x 29" |
169 lbs. |
135 lbs. |
|
3000 |
13'3" x 13'3" x 29" |
7" x 13'3" x 29" |
16" x 6'9" x 29" |
185 lbs. |
149 lbs. |
|
3500 |
14'3" x 14'3" x 29" |
7" x 14'3" x 29" |
16" x 7'3" x 29" |
205 lbs. |
167 lbs. |
|
4000 |
15'3" x 15'3" x 29" |
7" x 15'3" x 29" |
16" x 7'9" x 29" |
223 lbs. |
178 lbs. |
|
5000 |
17'3 x 17'3" x 29" |
7" x 17'3" x 29" |
16" x 8'9" x 29" |
269 lbs. |
215 lbs. |

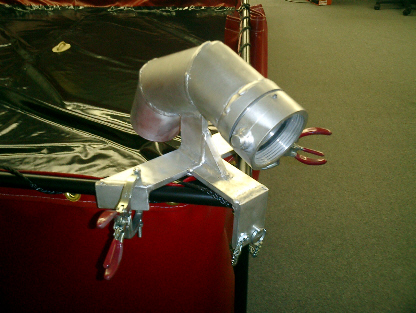

Supply Line Bracket #HUSLB25 & HUSLBD25
The supply line bracket is fabricated of aluminum so it is
lightweight and strong. It is available as pictured, with a single
fitting, or as a double fitting. Using the bracket keeps hose in place and
results in one less thing for a pump operator to worry about at a congested
scene.
Drain Connector #DM10
If you frequently use two tanks at a time this drain connector is
the simplest way to keep the tank levels even. All you do is attach the
collar between the 10" drain of each tank and gravity does the rest.
|
