Midship Pumpers
We would like to supply your department with a pumper.
Custom or commercial, we can equip your department for a price that is lower than the "program pumpers" the
big boys build but without the limited options. Now you can get exactly
what you want for a price that can't be beat.
When you take delivery of your new Reliable Fire Products
pumper, here is what you will find:
 |
|
 |
| Your body will be fabricated
from
5052-H32 aluminum sheet for minimum weight and maximum strength.
ROM brand roll-up doors will make it easier for your
personnel to access equipment when the apparatus is in tight spots. No
swing-out doors in the way or lift-up doors that can smack heads.
Liberal use of LEDs for the visual warning
system will help
cut down on the amount of power the electrical system draws. This
will result in less headaches since the system will not be operating at
maximum power continuously. |
|
|
 |
|
 |
After delivery you may find the need for an additional shelf.
It won't be a problem because we install Uni-Strut tracks for shelving
as a standard feature. Three tracks are
installed in every major body compartment so shelves can easily be added any
time after you take delivery without the need to drill any holes in the body.
If your unit will be equipped with a rectangular tank, the
primary compartments will be a full 24" deep from top to bottom as shown
the pictures above.
|
|
|
 |
|
 |

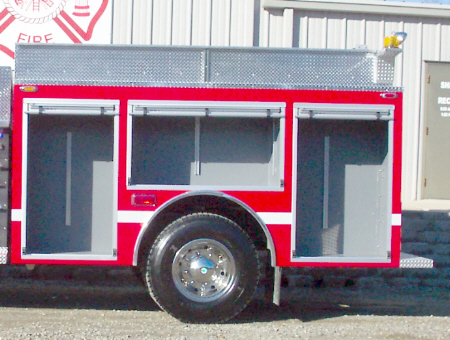

| The right side compartments on
the truck shown on the left are 3/4 height to
maintain a good sized door opening with the roll-up doors. We have
taken advantage of the extra space above the wheel well to provide storage
for up to eight air pack cylinders. The drop-down style door ensures
the cylinders will not bang against the side of the apparatus. You may want to go to taller compartments but we wouldn't
recommend anything shorter.

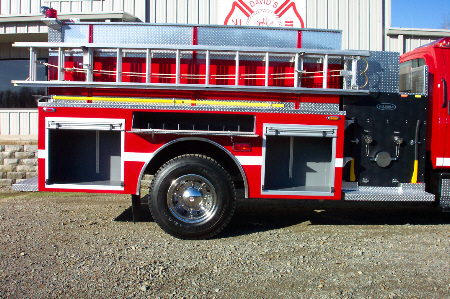

The truck on the right has full height compartments.
The change in depth from the bottom to the top is caused by ladder storage
provided next to the square water tank that is accessible from the rear of
the apparatus. Storing the ladders in the body rather than in a tunnel
through the center of the tank results in fewer seams in the tank and less
chances of problems down the road. Storage in a water tank "pass
through" is available but you must bear in mind that it will raise the
height of the hose bed.
Stainless steel fenderettes are a standard feature that will
help keep your apparatus looking good for years.
|
|
|
  |
|
  |
| If you ordered a hose reel your
members will like our standard location in the center rear compartment as
pictured above, on the right.
They won't have to climb on the truck to use it, even if they
rewind the hose too far. Keeping your personnel on the ground helps prevent
injuries. They will also appreciate an intermediate step which provides
a safe platform for hose loading. The picture on the
left shows that you can have a massive hose bed and a low hose bed at the
same time. This hose bed holds 1,500 feet of 5", 600' of 3", and an
additional 200' of 3" hose that is preconnected. All of that hose
with a square tank and we were able to keep the height to a minimum.
Next to the hosebed is storage for ladders, pike poles and suction hose.
The customer desired to have the suction hose as low as possible so it was
installed beneath the ladders. The small compartment just above the
rear step is equipped with a roll-out, three sided tray.
|
|
|
 |
|
We will install the
Hale,
Waterous, or
W.S. Darley pump of your choice so you can standardize with

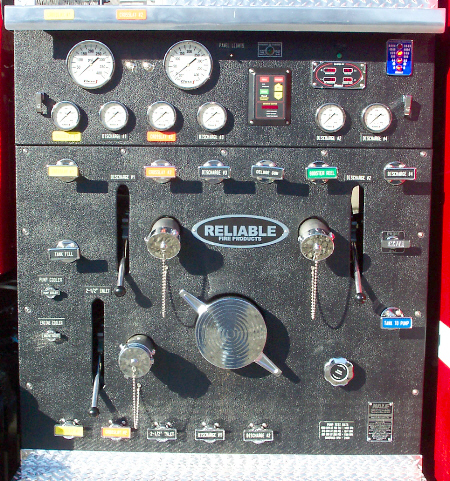

existing equipment. This pump panel is for a Hale,
QMID pump. Due to varying configurations between the pump
manufacturers, the layout of your pump panel might be somewhat different
than the one pictured here.
Features that will remain the same are:
Non-Glare Black vinyl surface,
Color coded labels,
Liquid filled Class 1 gauges,
Quarter turn drain valves,
Hinged access panel,
Master pump drain.
Other features on the panel are pretty much your choice.
|
| |
|
|
Closer examination as well as your visit to the factory will
also reveal more features and benefits than can be pictured here. Things
like:
- Welds performed by Certified welders,
- PPG 7 year paint warranty,
- Solid stepping surfaces,
- Solid body construction,
- Separate pump and body modules,
- Maximum storage capacity with little wasted space,
- Body engineered around chassis rather than one size fits
all,
- Stainless steel nuts, bolts and fasteners throughout,
- Packard Weather-Pak and Metri-Pak connectors,
- GXL wiring run in high temperature convoluted loom,
- Heavy duty SAE type 1, automatic reset circuit breakers,
- LED clearance and marker lights,
- Structural steel body subframe, sandblasted and finish
painted,
- Akron valves,
- Class 1 pump panel electronics,
- Class 1 gauges,
- Dielectric barriers between dissimilar metals,
- And much, much more.
Give us a call for more information on how we can assist you
and your department in owning the truck you really want for a price you can
afford.
|
